Product Perspective
Environment Monitoring Systems ( For further details please visit : www.nti.sa.com )

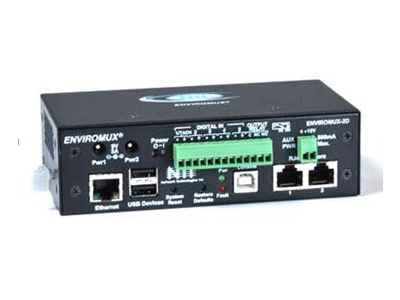

Small Enterprise Server Environment monitoring System
The ENVIROMUX-2D supports 2 external configurable sensors, 5 digital inputs, and 1 output relay for control of external devices. It features 2 USB ports for USB modem or USB flash drive. Linux inside. Monitor (ping) up to 16 IP network devices. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via USB 3G modem). Options available: DIN mounting, internal backup battery and 1RU rackmount kit.

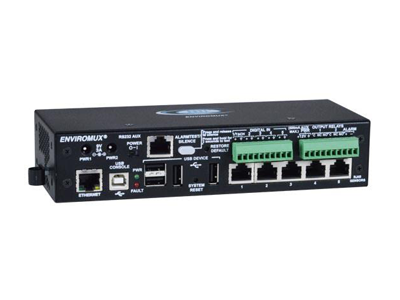

medium Enterprise Environment monitoring System
The ENVIROMUX-5D supports 5 external configurable sensors, 5 digital inputs, and 2 output relays for control of external devices. The system also includes two internal sensors: temperature and humidity. It features 4 USB ports for USB modems or USB flash drives. Linux inside. Monitor (ping) up to 64 IP network devices. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem). Options available: DIN mounting, internal backup battery, dual power supply, and 1RU rackmount kit.

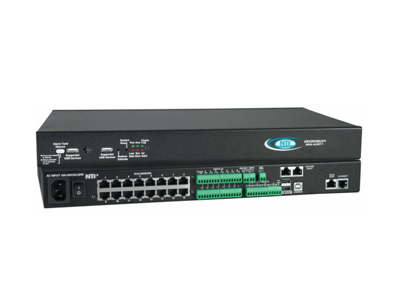

Large Enterprise Environment monitoring System
The ENVIROMUX-16D supports 16 external configurable sensors, 8 digital inputs, and 4 output relays for control of external devices. The system also includes three internal sensors: temperature, humidity and power. It features 4 USB ports for USB modems or USB flash drives. Linux inside. Monitor (ping) up to 64 IP network devices. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem). Options available: dual power supply, 24VDC or 48VDC power, and fiber optic port for connecting to fiber network. Internal backup battery and 1RU rackmount case are standard.
Legacy Enterprise Environment monitoring System
The ENVIROMUX-SEMS-16 supports 16 external configurable sensors, 8 digital inputs, and 4 output relays for control of external devices. The system also includes three internal sensors: temperature, humidity and power. It is available with an optional USB port for USB modem or USB flash drive. Monitor (ping) up to 64 IP network devices. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external GSM or 3G modem). Options available: USB port, 48VDC or 24VDC power, and dual power supply. Internal backup battery and 1RU rackmount case are standard.

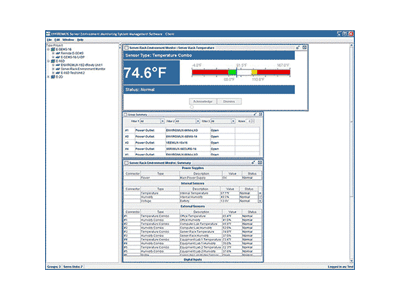

Management Software for Enterprise Environment monitoring Systems
The ENVIROMUX-MNG is an intuitive graphical software that provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D and ENVIROMUX-SEMS-16(U) units and all connected sensors. It can display values and statuses for individual sensors or a list of sensors. Multiple ENVIROMUX units may be monitored and configured individually or in a group. The server application actively polls all units for status information, as well as listens for alerts from all units. The client application communicates with the server to read statuses and to deploy configuration changes. The ENVIROMUX-MNG is compatible with Windows 2000/XP/Vista/7/8, Windows Server 2000/20003/20008, Solaris, Linux, FreeBSD, and MAC OS 9/10
LOW-COST ENVIRONMENT
MONITORING SYSTEM

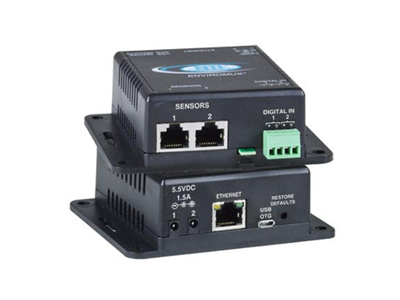

Mini Server Environment monitoring System
The ENVIROMUX-MINI-LXO features 2 temperature/humidity ports, 5 digital inputs, and 1 output relay for control of an external device. Linux inside. Monitor (ping) up to 16 IP network devices. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via USB 3G modem). Options available: internal backup battery, DIN mounting, and industrial system for high temperature environments up to 167°F (75°C).
POWER MONITORING
AND POWER CONTROL DEVICES

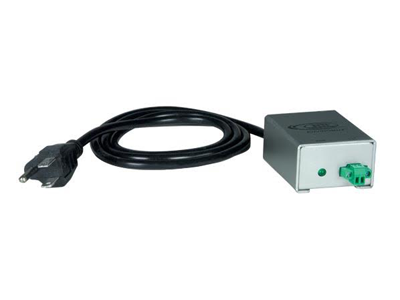

AC voltage Detector with Relay
The ENVIROMUX® AC Voltage Detector with Relay detects voltage from 50 to 250 VAC when connected to an environmental monitoring system with dry contact inputs, battery, sensor, or other device. The internal relay closes when sensing voltage above 60 VAC and opens when sensing voltage 55 VAC and below. Available with a standard US 120V 10A NEMA 5-15 plug or universal 250V IEC C14 socket.

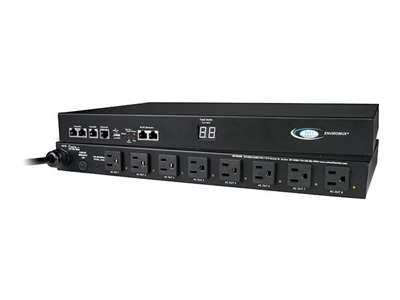

Secure Remote power Control Unit with Environmental monitoring
The ENVIROMUX® Secure Remote Power Control Unit allows you to remotely reboot and control power (on/off) to up to 8 servers or other powered devices from any location via secure web interface, RS232, SSH, or Telnet. Monitor (ping) up to 8 IP network devices. Supports 2 environmental sensors, including: temperature, humidity, and water detection. Sends alert notifications via email, syslog, LEDs, Web page, and SNMP. The 4-/8-port models support overload protection via circuit breaker and current, line voltage, line frequency, and power factor monitoring. Available with standard US 120V 15A NEMA 5-15 or universal 250V 10A IEC C14/C13 input and output connectors.

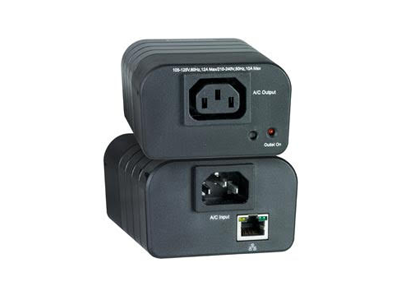

Low-Cost Remote power Reboot Switch
The PWR-RMT-RBT-LC allows you to remotely reboot and control power (on/off) to a server or other powered device over IP. Auto-scheduler allows for scheduling power on/off/reboot events. Control an unlimited number of Remote Power Reboot Switches from one software application. Multiple control options: Web interface, AutoPing, Telnet, DxP (Dataprobe Exchange Protocol). Auto-ping up to 2 IP addresses. Dual password protection with separate user and administrator passwords. Available with 12A US line cord or 10A country-specific line cord
